"CEDAR-5M" is designed for signal suppression: GSM-900/1800, 3G, 4G (LTE800), 4G (LTE2600, WiMAX-802.16 e), DECT, CDMA2000 1x, Wi-Fi 2.4, Wi-Fi 5.8, Bluetooth, ZigBee.
DESCRIPTION
The multi-standard product "CEDAR-5M" (CASE) is designed to block the operation of all types of devices for unauthorized listening and data transmission, audio and video transmitters using the standards GSM-900/1800, 3G, 4G (LTE800), 4G (LTE2600, WiMAX-802.16 e), DECT, CDMA2000 1x, Wi-Fi 2.4, Wi-Fi 5.8, Bluetooth, ZigBee in difficult conditions of electronic environment.

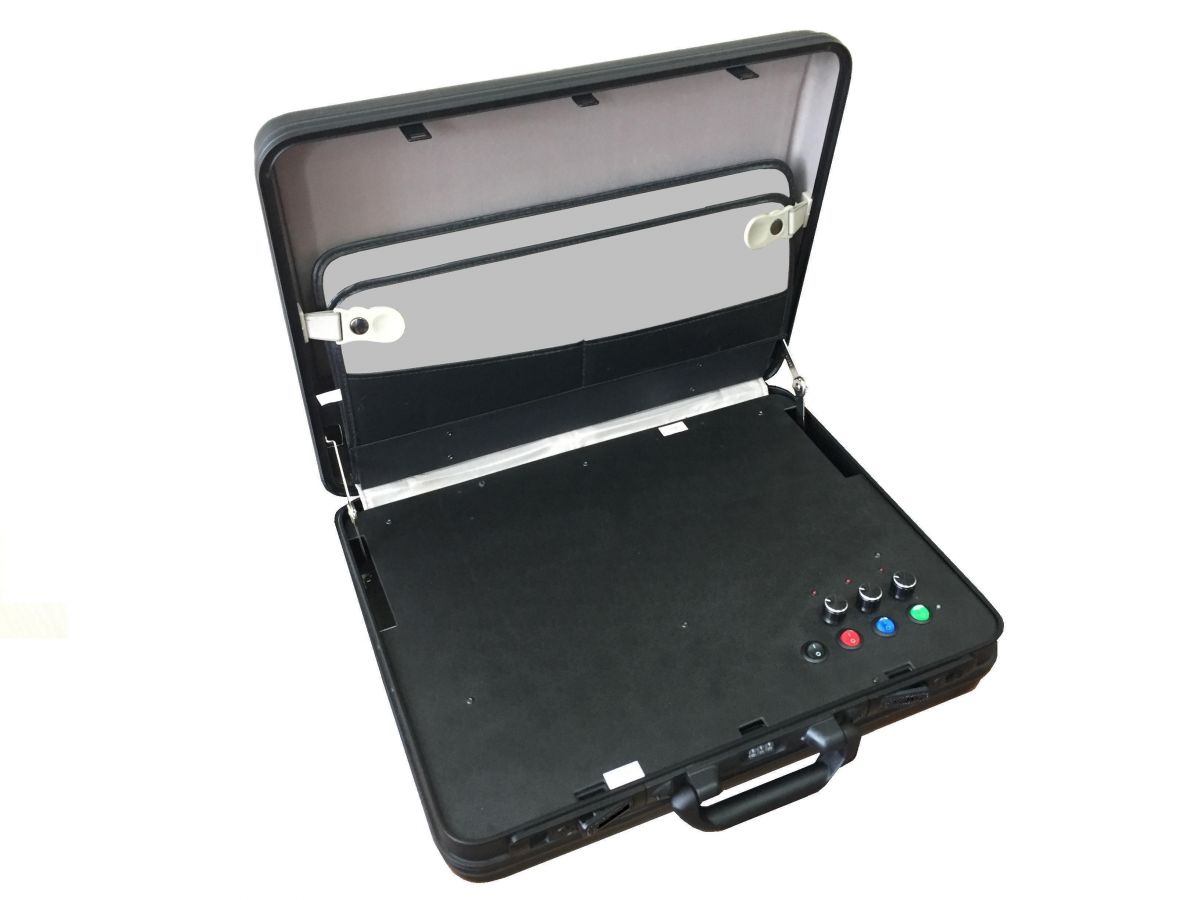

The device is camouflaged in an attache case and can be used both within the office and outside it, including on the road.
The effective range of the product is selected experimentally in the area of operation, and in ideal conditions can reach 40 meters.
FEATURES:
- suppression of all speech standards and data transmission, including WiFi 2.4 and WiFi 5.8;
- the power of the product at the input of the antenna connector in each frequency band is not less than 30 dBm;
- easy to transport;
- built-in antenna system;
- use of different power sources;
- easy and reliable operation;
- picking combinations depending on the Customer's requirements.
TECHNICAL SPECIFICATIONS:
|
Maximum suppression radius |
up to 40 meters* |
|
Operating frequency range: |
|
|
GSM 900, E-GSM standard |
925 – 960 MHz |
|
GSM 1800 standard |
1805 – 1880 MHz |
|
3G - UMTS(IMT-2000/WCDMA) standard |
2110 - 2170 MHz |
|
4G - LTE 800 FDD Band 20 standard |
791 – 821 MHz |
|
4G - LTE 2600 FDD Band 7 standard, WiMAX-802.16 e |
2570 – 2700 MHz |
|
standard 2.4 Wi-Fi, Bluetooth, ZigBee |
2400 - 2483,5 MHz |
|
WiFi standard 5.8 |
5100 – 5800 MHz |
|
CDMA2000 1X standard |
463 – 467,5 MHz |
|
DECT standard |
1880 – 1900 MHz |
|
The radiation pattern of antennas |
circular |
|
Antenna arrangement |
built-in |
|
Control of suppression modes |
local |
|
Power supply |
• powered by 12V batteries • from the 220V network • from the "cigarette lighter" of the car 12V |
|
Duration of operation in offline mode |
up to 60 minutes |
|
Power consumption |
no more than 150 W |
|
Dimensions, mm |
500х420х130 |
|
Weight |
no more than 12 kg |
|
Operating temperature range |
-20° to +40°C |
|
Warranty period of operation |
12 months |
* depending on the operating conditions.
SCOPE OF DELIVERY:
- Power unit and antenna unit in the attache case-1 pc.
- Battery (in the attache case) - 2 pcs.
- Power cord from the 220V network-1 piece.
- Power cord from the 12V network-1 piece.
- Product passport, operating instructions-1 pc.
